What Are the Installation Options for Gear Motors?

Understanding Gear Motor Installation Fundamentals

Key Factors in Gear Motor Installation

Getting gear motors installed correctly really matters if we want them to perform well and last longer than expected. Alignment plays a big role here because when things aren't lined up right, it puts extra pressure on those bearings and shafts inside, making everything run smoother and work better overall. If something gets misaligned though, watch out for problems down the road like parts wearing out faster or complete breakdowns happening unexpectedly. Mounting surfaces matter too. The spots where these motors sit need to be strong enough so they don't shake around while running. Too much vibration creates annoying noises and wears down important parts over time, which nobody wants especially not maintenance staff dealing with repairs later on.

When putting together gear motors, torque specs and load factors really matter too. Following those torque numbers makes sure bolts stay tight enough to hold everything together without snapping something due to being too forceful. Most maintenance manuals stress this point about getting the right amount of tension on bolts and picking the proper fasteners for the job. Wrong bolt choices or incorrect tightening can actually break down the motor over time, leading to all sorts of problems later on. Getting these basics right during installation pays off big time in the long run. Motors tend to run better day after day and last much longer than ones installed improperly, which saves money and headaches down the road.

Impact of Gear Reducer Types on Installation

Gear reducer installations can vary quite a bit depending on whether we're looking at helical or worm types. Helical gear motors stand out because they produce good torque and work well even when load conditions change. That makes these units great choices whenever precise operation matters most. But there's a catch they take up more space than other options so installation areas need to be planned carefully ahead of time. Worm gear reducers tell a different story altogether. These tend to be much smaller packages that fit into tighter spaces without too much hassle during setup. The downside? They just don't deliver the same level of torque power as their helical counterparts do.

What kind of gear reducer gets picked makes a big difference in both how much space is needed and how complicated the whole installation becomes. Take worm gear reducers as an example they actually make things easier when there's tight space constraints. Helical gear reducers tell a different story though, often requiring extra clearance for all their parts. Industrial engineers have seen plenty of real world situations where picking the wrong reducer caused major headaches during installation, which is why getting the match right between reducer type and what the system needs matters so much. Factory data shows installation time differences across reducer types can hit around 30% sometimes, so choosing correctly isn't just about fitting into a space it really affects whether projects stay on schedule or run behind.

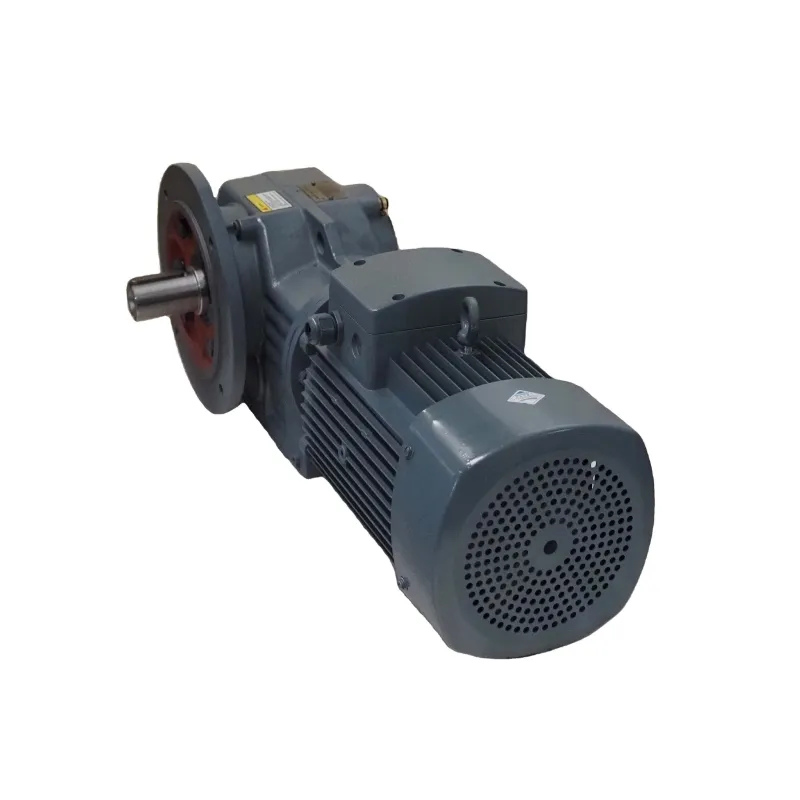

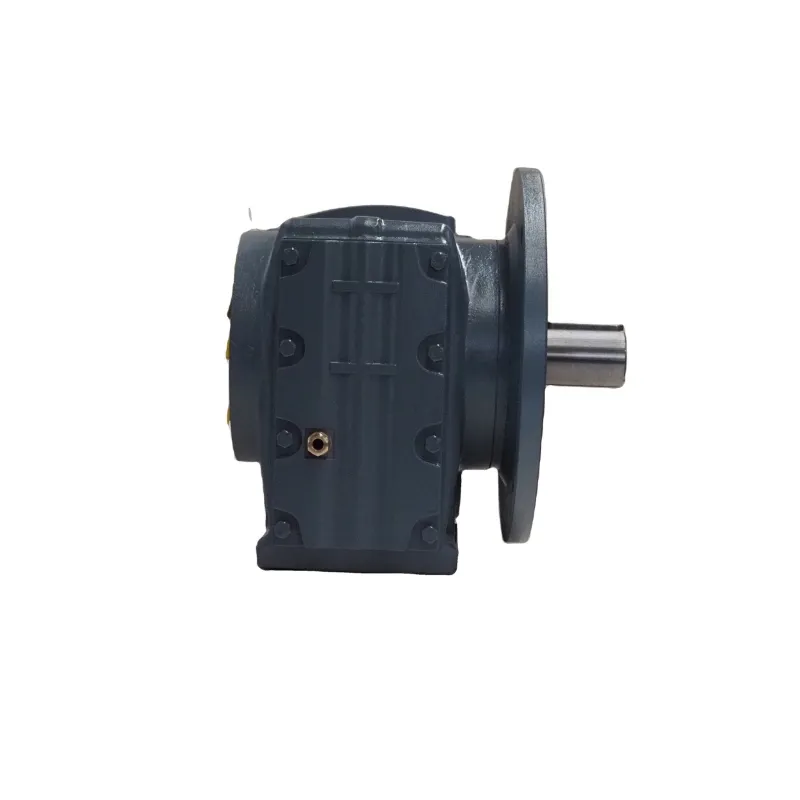

Helical Gear Reduction Motor Configurations

Helical gear reduction motors stand out because they run efficiently while producing less noise, which explains why so many industries rely on them for different purposes. The special helical cut design of these gears means smoother运转 and much quieter operation than straight cut alternatives. Installing these motors requires attention to detail though. First things first, make sure whatever surface they're mounted on is flat and stable since any wobble will eventually cause problems down the line. Getting those shafts and gears properly aligned isn't just good practice it's essential for keeping everything running smoothly over time. Real world tests show these motors actually perform better than expected in actual working conditions, delivering noticeable gains in how well machines operate day after day.

Worm Gear Reducer Alignment Techniques

Worm gear reducers come with special alignment issues because of how the gears are positioned, making them tricky to fit correctly. When installing these units, start by getting the worm gear housing firmly in place somewhere steady. Then work on lining up the worm shaft with whatever it's driving so there's minimal misalignment and no chance of parts sticking together. Backlash adjustment matters a lot too. Get this wrong either way and the whole system will suffer. Proper setup makes all the difference for long term operation. Well aligned gears run smoother for longer periods while cutting down on unnecessary wear and tear.

Parallel vs. Right-Angle Shaft Arrangements

Knowing when to choose between parallel and right angle shaft setups makes a big difference in how well machines perform while saving valuable floor space. Parallel shafts get praised a lot because they transmit torque better since everything lines up straight, cutting down on friction loss and giving maximum power transfer. Right angle arrangements work differently though. These usually involve special gears like helical worm or bevel types that let engineers save room by positioning motors at 90 degrees relative to what they're driving. Installation matters too. Straight shafts might need more room to mount properly but deliver power directly from point A to B. Angle shafts? They squeeze into tight spots where there's no extra breathing room, making them ideal for cramped industrial environments where every inch counts.

Getting the right setup for any particular job usually depends on what specs matter most and how the system will actually operate day to day. Take right angle configurations for example they work great in tight spaces where there isn't much room to spare, which is why we see them so often in things like elevators and conveyor belt systems. When space isn't an issue but power transmission becomes important, many big industrial operations go with parallel shaft setups instead because they deliver better torque performance. Looking at real world installations alongside manufacturer specs gives engineers a good starting point. Knowing exactly what each application demands makes all the difference when it comes time to pick between different shaft orientations.

Hollow Shaft vs. Solid Shaft Installation

Looking at hollow versus solid shafts involves considering weight, strength, and how easy they are to mount in different situations. Hollow shafts tend to weigh less than their solid counterparts, so machines using them end up being lighter overall. This reduction in weight can actually cut down on power requirements for some equipment. Another advantage is that these hollow designs make installation much simpler, particularly when working with tight spaces where running wires or other parts would otherwise be impossible. Just push everything through the center! Solid shafts tell a different story though. They pack a lot more punch when it comes to strength, which is why engineers still reach for them whenever there's heavy lifting involved or when systems need to handle serious torque loads without bending or breaking.

When it comes to installation, there's quite a difference between working with hollow versus solid shafts. Engineers tend to go with hollow ones when they need something precise but light on weight, especially where designs might change or require adjustments later on. Solid shafts hold their ground in tougher situations though, like those big industrial machines that run nonstop day after day. The torque numbers tell a different story too. Hollow shafts generally show up in stuff that doesn't push hard limits, whereas solid shafts take center stage where real power matters. Some research backs this up too. Hollow versions help cut down on inertia during motion, which is good for certain applications. But if the job involves serious stress points or constant strain, most professionals will reach for solid shafts because they just don't bend or break under pressure like their hollow counterparts sometimes do.

Matching 12V High-Torque Motors to Applications

The 12V high torque motors are really adaptable and work well across many different situations. They pack quite a punch given their small footprint, which makes them perfect when there's not much room to spare. Think about robots needing precise movements or cars with tight engine compartments. When someone wants to install these motors into something already built, they need to check out things like the voltage requirements, how much current they'll draw, and whether they'll play nice with whatever drive system is already in place. Getting everything working together smoothly means looking closely at specs like RPMs, torque numbers, and how efficiently they convert electricity to motion. Otherwise, the whole system might end up struggling to perform as expected.

Looking at actual improvements made possible by 12V high torque motors helps put things into perspective. Take the automotive sector as one instance. When manufacturers swapped out bigger motors for these compact alternatives, vehicles got lighter on average by about 15% which translated directly into better gas mileage across most models. The robotics field saw similar benefits too. Factories reported smoother movements from robotic arms equipped with these motors, allowing them to complete delicate assembly work much quicker than before without compromising quality. Getting these motors to work properly requires checking if they fit both electrically and mechanically with what's already installed in the system. Most engineers find it helpful to consult manufacturer specs alongside general industry guidelines when making these kinds of upgrades. A little extra time spent on compatibility checks usually pays off handsomely in long term reliability.

Coupling Small Gear Motors to Loads

Connecting small gear motors to their loads involves several different approaches, each with its own strengths. The main types we see in practice are rigid, flexible, and fluid couplings. Rigid ones are straightforward and work best when shafts line up perfectly from the start. Flexible couplings handle situations where there's some misalignment between components, plus they take the hit when unexpected shocks occur during operation. Fluid couplings come into play for applications needing smooth starts and stops, making them ideal for machinery that needs controlled acceleration without sudden jolts. When picking a coupling solution, engineers need to look closely at what the motor will actually be driving and how those operational demands match up with the characteristics of each coupling type available.

When looking at couplings, load factors and torque needs really matter because they直接影响 how well power gets transmitted from one part to another. Getting this right means checking what the load actually needs versus what the motor can handle without slipping around. Some field tests show that when engineers get the coupling right, machines run smoother for longer periods, which cuts down on maintenance costs and keeps motors running years beyond their expected lifespan. Most equipment makers include detailed specs along with real world test results in their manuals to help technicians pick the right components. Following these manufacturer guides helps match up the coupler with both motor and load parameters, so everything works together better and lasts much longer in actual operation conditions.

Sealing Solutions for Harsh Environments

Gear motors need protection against harsh environments, and there are several sealing options out there that keep them running longer and better. Without these seals, all sorts of problems happen when dust gets inside, moisture finds its way in, or chemical exposure starts breaking things down. When installing seals, technicians should make sure they're applied evenly across surfaces and double check if the seal material works well with whatever metal or plastic components are in the motor housing. Field reports show that motors left unprotected in tough industrial settings tend to fail much faster compared to ones with good quality seals installed properly. Most manufacturers actually publish detailed specs about which seal types work best for different applications. Silicone is pretty standard for general purpose use while nitrile handles oil and grease situations quite well. For really aggressive chemical environments, fluoroelastomer tends to be the go-to choice despite being more expensive upfront.

Vibration Damping for Precision Installations

Getting proper vibration control matters a lot for precision applications where motors need to keep performing well without losing their function over time. When there isn't enough damping, those annoying vibrations actually waste energy and make parts wear out faster than they should. Different approaches get used based on what exactly needs damping. Rubber mounts work great for smaller machines while industrial equipment often uses specialized gel pads or even dynamic dampers that adjust themselves. The way these damping solutions fit into the bigger picture matters too because sometimes adding them changes how other components interact. Real world experience shows that good damping makes motors last longer and run smoother across all sorts of operations. Most engineers will tell anyone who asks that using materials like elastomers or viscoelastic compounds gives the best results for keeping motor systems stable and durable under normal operating conditions.

Thermal Management in Compact Setups

Good thermal management makes all the difference when dealing with small motors since tight spaces often mean higher temperatures build up faster. Most engineers rely on things like heat sinks made from metal, cooling fans positioned just right, and special materials that actually transfer heat away from sensitive components. Getting these cooling solutions installed properly matters a lot too - placing them where they won't block air flow and making sure there's enough room around them for proper ventilation. Studies have shown that motors running hot lose about 30% efficiency over time and tend to fail much sooner than those kept cool. For anyone looking at materials, aluminum works well for heat sinks because it conducts heat so efficiently while copper is better but costs more. Designers should also think about how heat moves through the entire system, not just individual parts. Motors operating in cramped industrial settings benefit greatly from these approaches, staying reliable longer despite their limited space.

Frequently Asked Questions

What are the main factors to consider in gear motor installation?

The main factors include proper alignment, suitable mounting surfaces, torque specifications, and load considerations. Ensuring these aspects can prevent mechanical failures and prolong the lifespan of the motor.

How do different gear reducer types affect installation?

Helical gear reducers require more space due to their size, offering high torque and efficiency, while worm gear reducers are compact and easier to install but may not provide the same torque levels as helical reducers.

Why is proper alignment crucial for worm gear reducers?

Proper alignment minimizes offset and potential binding, ensuring consistent efficiency and reducing wear over time. It's vital to adjust backlash accurately to enhance operational longevity.

Which shaft arrangement is better: parallel or right-angle?

The choice depends on the application. Parallel shafts offer better torque transmission, whereas right-angle shafts save space and provide flexibility in confined areas.

What are the advantages of hollow shafts over solid shafts?

Hollow shafts are lighter and allow for easy mounting in space-restricted setups, whereas solid shafts offer superior strength for high torque and robust load handling.

How can sealing solutions enhance gear motor longevity?

Proper seals prevent contaminants like dust and moisture from affecting motor performance, significantly reducing failure rates in extreme conditions.

What thermal management strategies are effective in compact setups?

Effective strategies include using heat sinks, cooling fans, and thermally conductive materials to manage heat dissipation and maintain motor efficiency in confined spaces.
